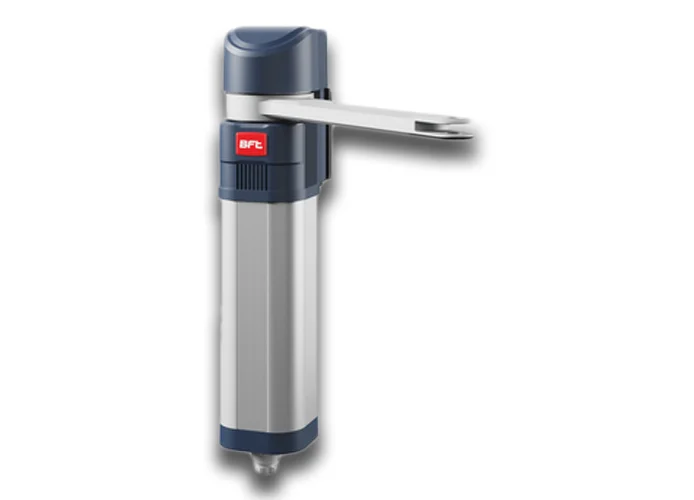

BFT - ELECTROMECHANICAL REVERSIBLE OPERATOR FOR PEDESTRIAN SWING GATES WEIGHING UP TO 80 KG AND 1.2 METERS IN LENGTH.
LIMIT SWITCHES CONTROL VIA ABSOLUTE ENCODER.
OPERATOR SAFETY GUARANTEED BY THE D-TRACK SYSTEM, WHICH DETERMINES POSITION AND FORCE WITH WHICH TO MOVE THE MOTOR
DEGREE OF PROTECTION: IP44
MANOEUVRING SPEED: 4.5 - 6.5 SECONDS (INCLUDING DECELERATION)
POWER SUPPLY: 24V DC
E5 BT A12
2601403 P930027 00003
Complementary accessories (not included):
- D113745 00002 - THALIA: Control unit with display for one or two 24V electromechanical operators for swing gates
- D113747 00002 - THALIA P: control unit for one or two 24V operators for electromechanical swing gates with electric lock management, for highly complex systems
- N734921 - LBA: Articulated lever E5 BT A 2nd part
- N735057 - LS12: Lever for sled arm E5 BT A12 PEDESTRIAN
- P125020 - BBT BAT: Emergency battery kit for THALIA and THALIA P and Vega integrated
