BENINCA - THREE PHASE ELECTROMECHANICAL 230 VAC GEARED MOTOR FOR SLIDING GATES FOR INDUSTRIAL USE, UP TO 3500KG
- VENTILATED FOR INTENSIVE USE
- CONTROL UNIT WITH BUILT-IN RECEIVER, MAGNETIC ENCODER AND INVERTER
- FULL METAL MECHANICS AND OIL LUBRICATION
- OIL LUBRICATED REDUCTIONS
- THE ENCODER DEVICE ENSURES PRECISION IN THE GATE MOVING PHASES
- CASING PROTECTIVE TREATMENT AND PAINT
- THE INVERTER TECHNOLOGY ALLOWS FOR MORE PRECISE ADJUSTMENT OF THE GATE MOVING PHASES, AND INCREASED CRUSH PREVENTION SECURITY
- IP68 LIMIT SWITCH
- PERSONALISED RELEASE KEY
FOUNDATION PLATE NOT INCLUDED

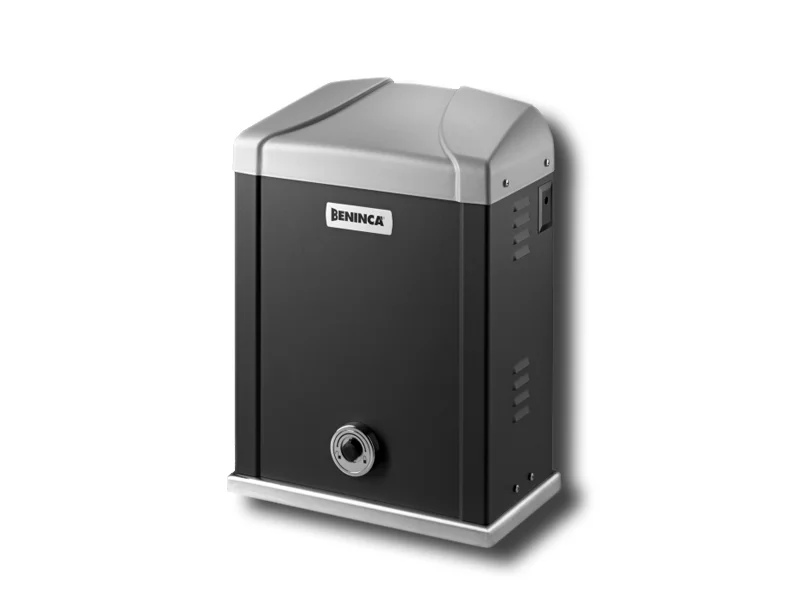

THREE PHASE GEARED MOTOR
BISON35 OTI L 9591929
TECHNICAL DETAILS:
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAX CURRENT: 8 A
MAXIMUM THRUST: 2500 N
OPENING TIME: 10,5 m/min
WORKING CYCLE: intensive use
INDEX OF PROTECTION: IP44
OPERATING TEMPERATURE: -20°C /+50°C
LUBRICATION: OIL
