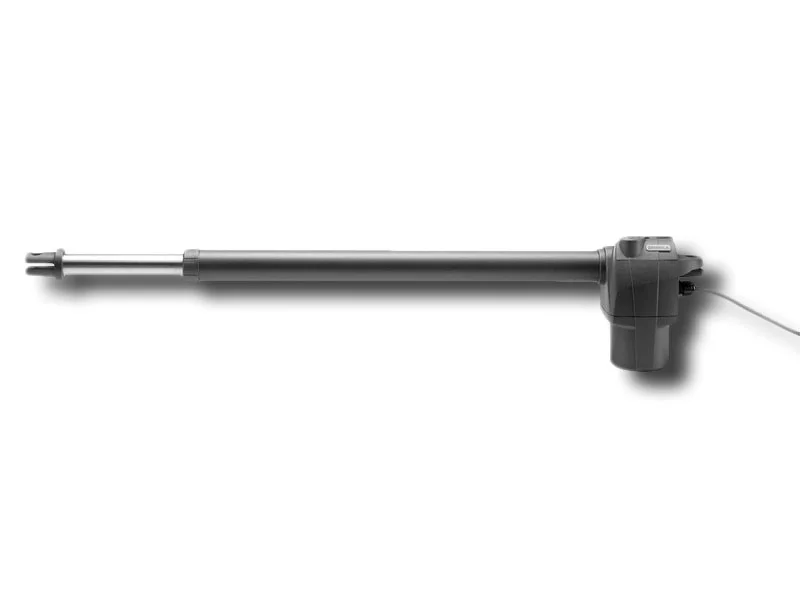

BENINCA - RIGHT IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR, WITH TELESCOPIC LINEAR MOVEMENT, FOR SWING GATES WITH LEAVES UP TO 4 MT
- GEARMOTOR WITH EASY ACCESS, TOP RELEASE
- ESSENTIAL DESIGN AND LINES PARTICULARLY SUITABLE FOR WROUGHT IRON GATES
- EASY AND QUICK TO INSTALL THANKS TO COMPACT DIMENSIONS AND INSTALLATION DIMENSIONS
- ENDLESS SCREW PROTECTED BY A SCRAPER RING AND A STAINLESS STEEL STEM THAT MAKE IT SUITABLE EVEN FOR DUSTY, SANDY OR AGGRESSIVE ATMOSPHERIC CONDITIONS
GEARMOTOR FOR SWING GATES
BILL50M DX 9592102
TECHNICAL DETAILS:
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAX CURRENT: 1,1 A
MAXIMUM THRUST: 2800 N
OPENING TIME: 21''
WORKING CYCLE: 30%
STANDARD STROKE: 500 mm
MAXIMUM STROKE: 520 mm
INDEX OF PROTECTION: IP54
OPERATING TEMPERATURE: -20°C /+50°C
