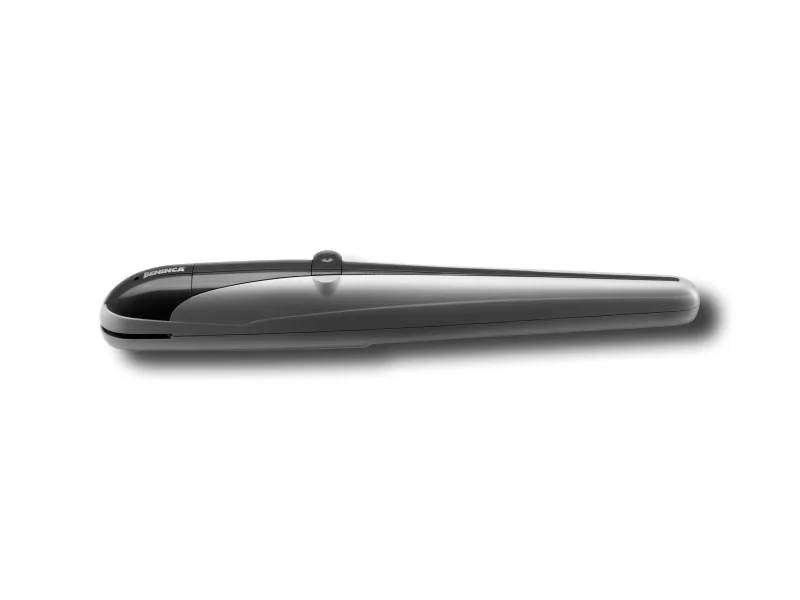

BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR, LINEAR WORM GEAR MOVEMENT, FOR SWING GATES WITH LEAVES UP TO 3 MT
- THE ENCODER DEVICE GUARANTEES ANTI-CRUSHING SAFETY AND PRECISION IN THE GATE MOVEMENT PHASES
- RELIABLE AND QUICK TO INSTALL, THANKS TO THE 2 ADJUSTABLE MECHANICAL STOPS ON OPENING AND CLOSING
- BRONZE REDUCTION GEAR AND NUT
- CUSTOMISED RELEASE KEY
GEARMOTOR FOR SWING GATES
230V
BOB30ME 9591446
TECHNICAL DETAILS:
MAINS SUPPLY: 230 Vac (50-60 Hz)
MOTOR POWER SUPPLY: 230 Vac
MAX CURRENT: 1,8 A
MAXIMUM THRUST: 2300 N
OPENING TIME: 18''
WORKING CYCLE: 30%
STANDARD STROKE: 270 mm
MAXIMUM STROKE: 325 mm
INDEX OF PROTECTION: IP44
OPERATING TEMPERATURE: -20°C /+50°C
MAX LEAF LENGHT: 3 mt
