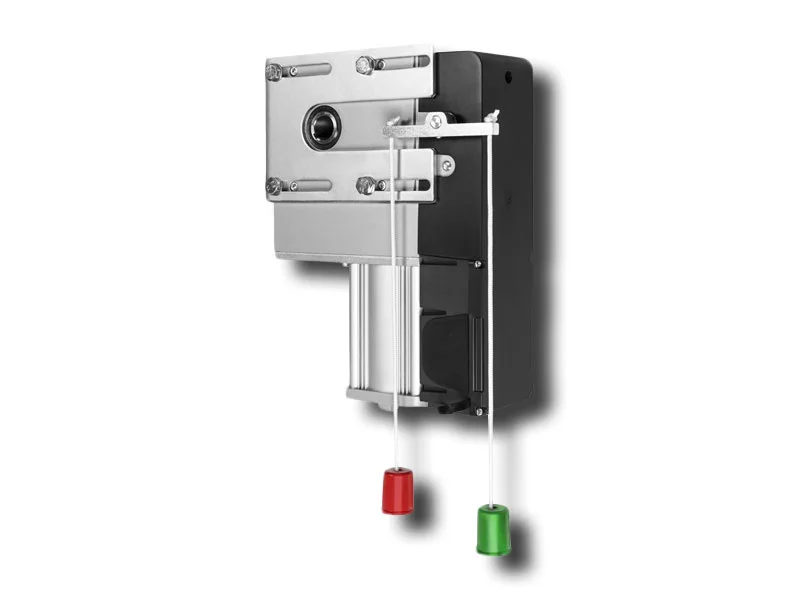

BENINCA - ELECTROMECHANICAL GEARMOTOR WITH QUICK RELEASE OR MANUAL CHAIN OPERATION, FOR SECTIONAL AND ROLLING DOORS UP TO 35 M2
- THREE-PHASE MOTOR WITH 1/40 REDUCTION RATIO
- SUITABLE FOR INDUSTRIAL USE
- NEW PLASTIC BOX WHICH FACILITATES MOTOR WIRING THANKS TO THE POSITION OF THE FRONT TERMINAL AND THE POSSIBILITY OF ACCESSING THE CABLES FROM THREE DIFFERENT POSITIONS
- EASY AND PRECISE ADJUSTMENT OF THE LIMIT SWITCH POSITION
- OIL-BATH REDUCTION GEARS WITH TEMPERED STEEL SCREW AND BRONZE GEARING GUARANTEE HIGH PERFORMANCE, MAXIMUM RELIABILITY AND SILENT OPERATIONS
- 4 MICROMETRIC LIMIT SWITCHES ADJUSTMENT
SECTIONAL AND ROLLING SHUTTER DOOR GEARMOTOR
VN.M40 9592606
TECHNICAL DATA:
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAX CURRENT: 3.3 A
MAX DRIVE TORQUE: 130 Nm
MAX ROTATIONS: 38
OUTPUT SPEED: 24 r.p.m.
SHAFT BORE: 1'' (25.4 mm)
LIMIT SWITCH REDUCTION RATIO: 1/40
WORKING CYCLE: 30%.
INDEX OF PROTECTION: IP40
OPERATING TEMPERATURE: - 20°C / + 50 °C
LUBRICATION: OIL
