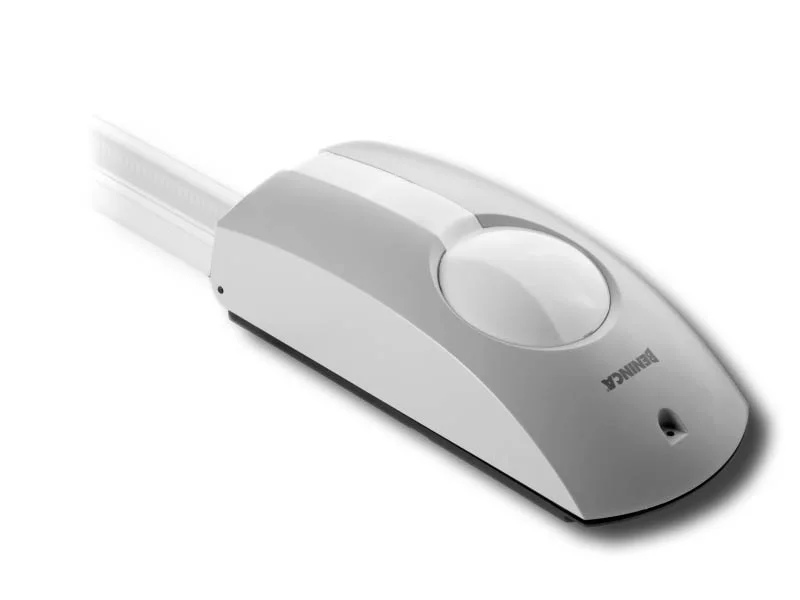

BENINCA - IRREVERSIBLE GEARMOTOR 24 Vdc FOR SECTIONAL DOORS UP TO 11 M2
- GEARMOTOR FOR INTENSIVE USE WITH BUILT-IN CONTROL UNIT EQUIPPED WITH A SWITCHING EXTENDED RANGE POWER SUPPLY 230 Vac ± 10% 50/60 Hz THAT ALLOWS REDUCED CONSUMPTION AND LONG ACTUATOR LIFE
- THE CONTROL UNIT IS EQUIPPED WITH AN INNOVATIVE SYSTEM FOR REDUCING CONSUMPTION (ESA+), WHICH GUARANTEES A STAND-BY ABSORPTION OF LESS THAN 0.3 W
- THE INCORPORATED ENCODER DEVICE GUARANTEES MAXIMUM SAFETY AND PRECISION IN THE DOOR MOVEMENT PHASES
- STC SYSTEM DEVICE TO MANAGE TORQUE DELIVERY IN RELATION TO THE POSITION OF THE GATE, GUARANTEEING MAXIMUM SAFETY
- MAXIMUM PERFORMANCE AND SPEED 12 M/MIN
- SELF-PROGRAMMING BY RADIO CONTROL ACTIVATED ON FIRST INSTALLATION
- EQUIPPED WITH A SERVICE LIGHT WITH 14 INTEGRATED LEDS GUARANTEEING HIGH LIGHT OUTPUT. THE SERVICE LIGHT CAN ALSO BE OPERATED BY RADIO CONTROL IN TIMED OR BISTABLE MODE, ALLOWING IT TO ALSO BE USED AS A CEILING LIGHT
- GUARANTEED OPERATION EVEN IN THE EVENT OF A POWER FAILURE BY MEANS OF BATTERIES THAT CAN BE PERFECTLY INTEGRATED INTO THE MOTOR
- ANTI-CRUSHING SYSTEM WITH AMPEROMETRIC DETECTION
- PREPARED FOR CONNECTION OF THE X.BE ACCESSORY FOR INTEGRATION OF KNX HOME AUTOMATION SYSTEMS AND PROGRAMMING VIA BEUP APP AND PRO.UP INTERFACE
- ADJUSTABLE STROKE WITH ONE MECHANICAL STOP INCLUDED IN THE BELT TRACKS AND TWO IN THE CHAIN TRACKS
1 TO.GO2VA TRANSMITTER IS INCLUDED
RAIL NOT INCLUDED
TECHNICAL DETAILS JM.3:
- POWER SUPPLY: 230 VAC (50-60HZ)
- MOTOR SUPPLY: 24 VDC
- MAX ABSORBED CURRENT: 0,7 A
- POWER CONSUMPTION IN STAND-BY: 60 mA
- THRUST: 600 N
- OPENING SPEED: 8,9 M/MIN
- DUTY CYCLE: INTENSIVE USE
- PROTECTION LEVEL: IP40
- OPERATING TEMPERATURE: -20°C /+50°C
- MAX DOOR SURFACE: 11 M2/MAX
- LIMIT SWITCH: ELECTRONIC WITH ENCODER
- WEIGHT: 4,6 KG
GEARMOTOR FOR SECTIONAL DOORS
JM.3 959201416
