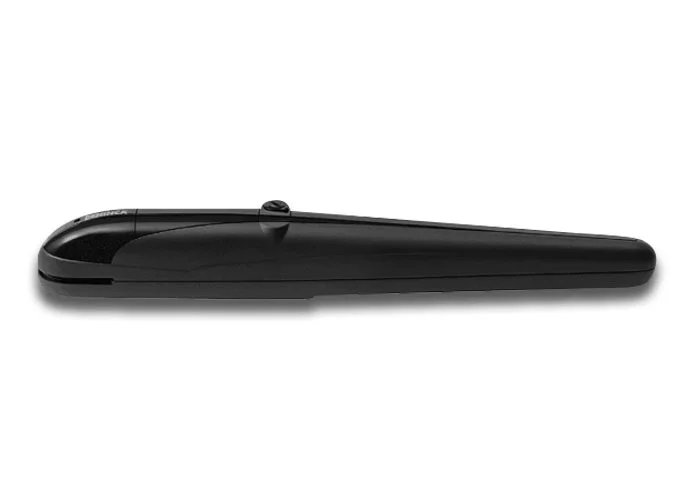

BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR 230VDC FOR LEAF UP TO 3M
- EQUIPPED WITH ENCODER
- ROLLED BALL SCREW Ø 20 MM
- THE ENCODER DEVICE GUARANTEES MAXIMUM SAFETY AND PRECISION WHEN MOVING THE GATE
- QUICK INSTALLATION THANKS TO TWO ADJUSTABLE MECHANICAL STOPS FOR OPENING AND CLOSING
- EASY-ACCESS TOP RELEASE.
BENINCA - BOB30ME.DK
TECHNICAL DETAILS:
MOTOR POWER SUPPLY: 230 VDCMAXIMUM CURRENT ABSORBED: 1.8 A
MAXIMUM PUSH :2300 N
OPENING TIME: 18"
STANDARD STROKE :270 MM
MAXIMUM STROKE: 325 MM
WORKING CYCLE: 30%
INDEX OF PROTECTION: IP44
LUBRICATION: GREASE
OPERATING TEMPERATURE: -20°C /+50°C
MAX LEAF LENGHT: 3 M.
