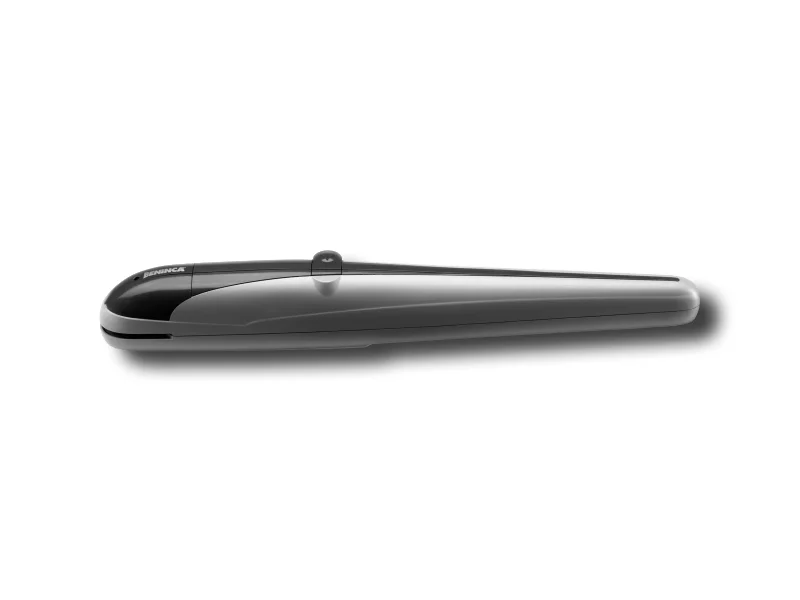

BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR, WITH LINEAR WORM SCREWS, FOR SWING GATES UP TO 2,1 MT PER LEAF
RELIABLE, QUIET, AND QUICK TO INSTALL GEARED MOTOR, THANKS TO ITS 2 ADJUSTABLE MECHANICAL STOPS FOR OPENING AND CLOSING. AVAILABLE IN THE 230 VAC AND 24 VDC VERSIONS.
ROLLED BALL SCREWS Ø 20 MM. EASY ACCESS RELEASE FROM ABOVE.
IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR
BOB21M 9591534
TECHNICAL DETAILS:Power supply: 230 Vac (50-60Hz)
Motor supply: 230 Vac
Max absorbed current: 1,5 A
Max Thrust: 1800 N
Opening time: 18”
Duty cycle: 30%
Standard stroke: 270 mm
Max stroke: 325 mm
Protection level: IP44
Encoder: NO
Operating temperature: -20°C /+50°C
