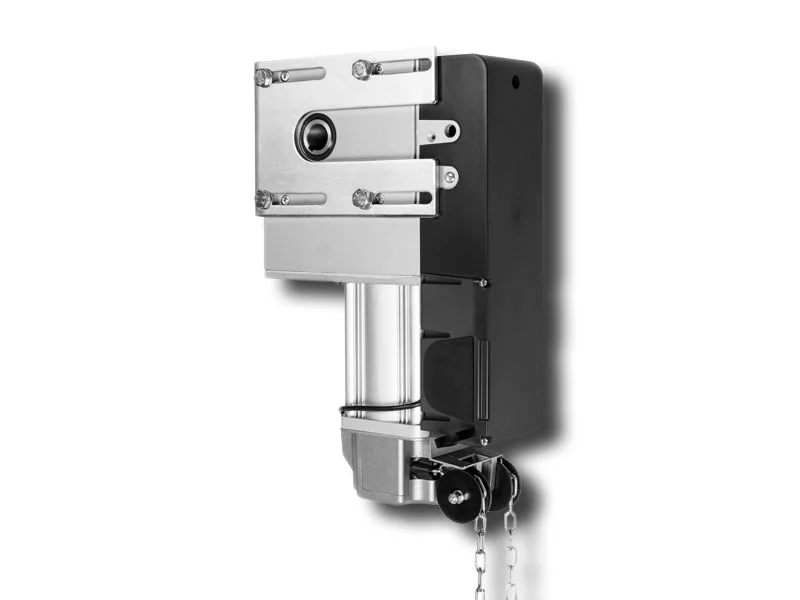

BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR WITH MANUAL CHAIN OPERATED MOVEMENT, FOR SECTIONAL DOORS AND ROLLING DOORS UP TO 35 M2
- THREE-PHASE MOTOR WITH 1/40 REDUCTION RATES
- INDUSTRIAL USE
- NEW PLASTIC BOX THAT MAKES WIRING THE MOTOR EASIER,
THANKS TO THE POSITION OF THE FRONT CLIP CONNECTOR AND THE
POSSIBILITY OF REACHING THREE DIFFERENT POSITIONS WITH THE WIRING.
- EASY AND PRECISE ADJUSTMENT OF LIMIT SWITCH POSITION
- OIL LUBRICATED REDUCTIONS WITH HARDENED STEEL SCREW
AND BRONZE GEARS GUARANTEE HIGH PERFORMANCE,
MAXIMUM RELIABILITY AND SILENT OPERATION
- 4 MICROMETRICALLY ADJUSTABLE LIMIT SWITCHES
GEARMOTOR FOR SECTIONAL AND ROLLING DOORS
VN.M40 9592606
TECHNICAL DETAILS:
POWER SUPPLY: 230 Vac (50-60Hz)
MOTOR SUPPLY: 230 Vac
MAX ABSORBED CURRENT: 3,3 A
MAX TORQUE: 130 Nm
MAX OUTPUTS ROTATION: 38
OUTPUT SPEED: 24 r.p.m.
SHAFT HOLE: 1'' (25,4 mm)
LIMIT SWITCH RED. RATE: 1/40
DUTY CYCLE: 30%
PROTECTION LEVEL: IP40
OPERATING TEMPERATURE: - 20°C / + 50 °C
LUBRIFICATION: OIL
