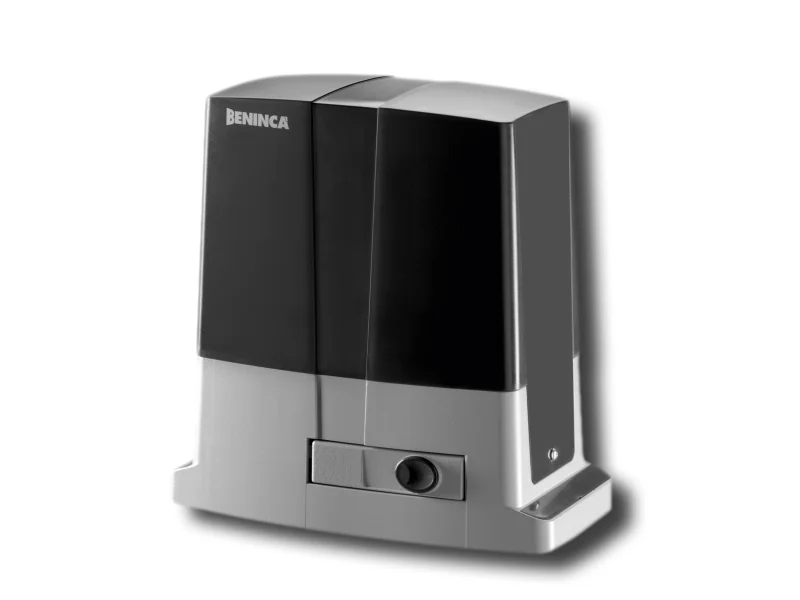

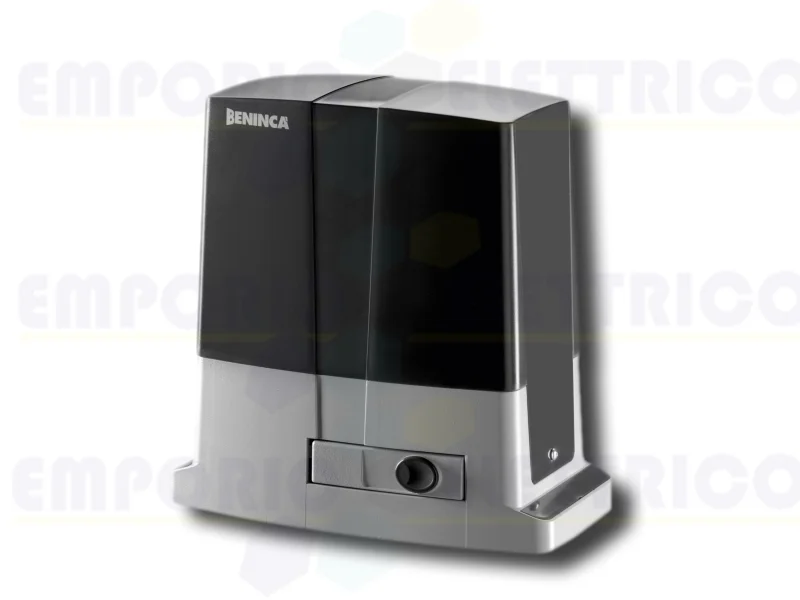

BENINCA - ELECTROMECHANICAL GEARED MOTOR 230VAC FOR SLIDING GATES FOR COMMERCIAL USE, UP TO 800KG
- CONTROL UNIT AND ENCODER INTEGRATED
- THE ENCODER DEVICE ENSURES CRUSH PREVENTION AND PRECISION IN THE GATE MOVING PHASES
- FULL METAL MECHANICS AND OIL LUBRICATION ENSURE MAXIMUM GEAR DURABILITY. THE TYPE OF OIL USED IS ALSO PARTICULARLY EFFECTIVE, AND ENSURES MAXIMUM EFFICIENCY EVEN AT LOW TEMPERATURES
- REDUCED MECHANICAL WEAR ON COMPONENTS
- METAL RELEASE LEVER
- MAGNETIC LIMIT SWITCHES INTEGRATED
GEARED MOTOR FOR SLIDING GATES
BULL8 OM.S 9591497
TECHNICAL DETAILS:
POWER SUPPLY: 230 Vac (50-60Hz)
MOTOR SUPPLY: 230 Vac
MAX ABSORBED CURRENT: 2,6 A
MAX THRUST: 940 N
OPENING SPEED: 10,5 m/min
DUTY CYCLE: 40%
PROTECTION LEVEL: IP44
MAGNETIC LIMIT SWITCHES: YES
OPERATING TEMPERATURE: -20°C /+50°C
