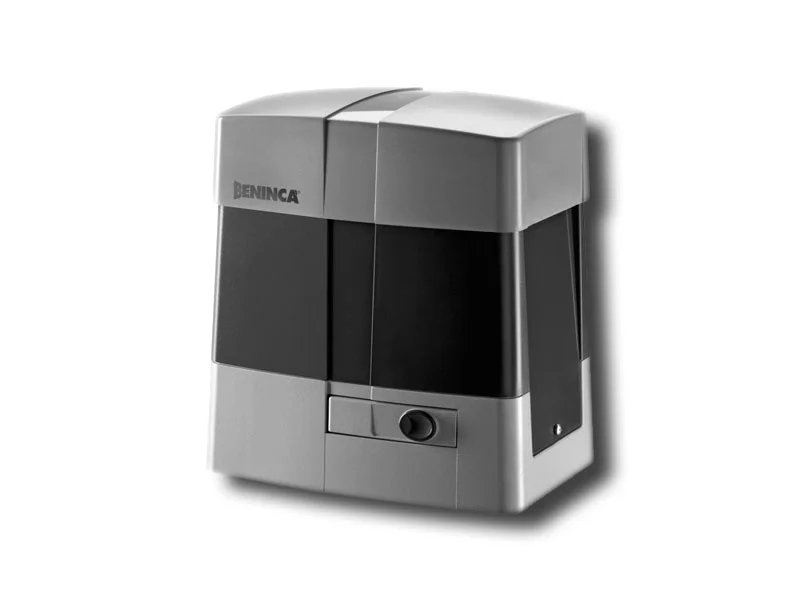

BENINCA - GEARED MOTOR 230VAC FOR SLIDING GATES FOR COMMERCIAL USE, UP TO 1000KG
- CONTROL UNIT AND ENCODER INTEGRATED
- THE ENCODER DEVICE ENSURES CRUSH PREVENTION AND PRECISION IN THE GATE MOVING PHASES
- METAL RELEASE LEVER
GEARED MOTOR FOR SLIDING GATES
BULL10M 9592323
TECHNICAL DETAILS:
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAX CURRENT: 1,6 A
MAXIMUM THRUST: 1000 N
OPENING TIME: 10,5 m/min
WORKING CYCLE: 40%
INDEX OF PROTECTION: IP44
MAGNETIC LIMIT SWITCHES: NO
OPERATING TEMPERATURE: -20°C /+50°C
