BENINCA - GEARED MOTOR FOR SLIDING GATES FOR COMMERCIAL USE UP TO 600KG OF WEIGHT
- FAST 24 VDC GEARED MOTOR FOR INTENSIVE USE WITH INTEGRATED CONTROL UNIT EQUIPPED WITH SWITCHING POWER SUPPLY (115/230 VAC) THAT ALLOWS A REDUCED POWER USE AND A LONG LIFESPAN OF THE ACTUATOR
- THE MAIN CONTROL UNIT, ON THE TOP PART OF THE MOTOR, FACILITATES THE WIRING PROCEDURE AND ALSO CALCULATES THE POSITION OF THE MOTOR STARTING FROM THE MEASUREMENT OF INSTANTANEOUS SPEED (VIRTUAL ENCODER)
- THE VIRTUAL ENCODER ALLOWS PROPER MANAGEMENT OF THE
SLOWING-DOWN PHASES, MOVEMENT TRACKING (STC SYSTEM),
AND TORQUE MANAGEMENT IN RELATION TO THE POSITION OF THE GATE, WHICH GUARANTEES MAXIMUM SAFETY
- SELF-PROGRAMMING WITH THE RADIO TRANSMITTER CAN BE ACTIVATED AT THE FIRST INSTALLATION. PRACTICAL CABLEGUIDES
- MAXIMUM PERFORMANCE AND SPEED (25.5 M/MIN WITH 600 KG)
- ANTI-CRUSHING SYSTEM WITH AMPEROMETRIC OBSTACLE DETECTION
- SAFETY SENSOR THAT STOPS THE MOTOR POWER SUPPLY
DURING RELEASE OPERATIONS
- DESIGNED FOR CONNECTION TO THE X.BE MODULE TO INTEGRATE
THE DEVICE INTO KNX HOME AUTOMATION SYSTEMS
- CONVENIENT COMPARTMENT FOR 2 MOD. DA.BT2 2.1 AH BATTERIES
- METAL RELEASE LEVER
- OPTION TO OPERATE OPPOSED SLIDING GATES USING THE "SIS" ACCESSORY
- VERSION WITH MAGNETIC LIMIT SWITCHES

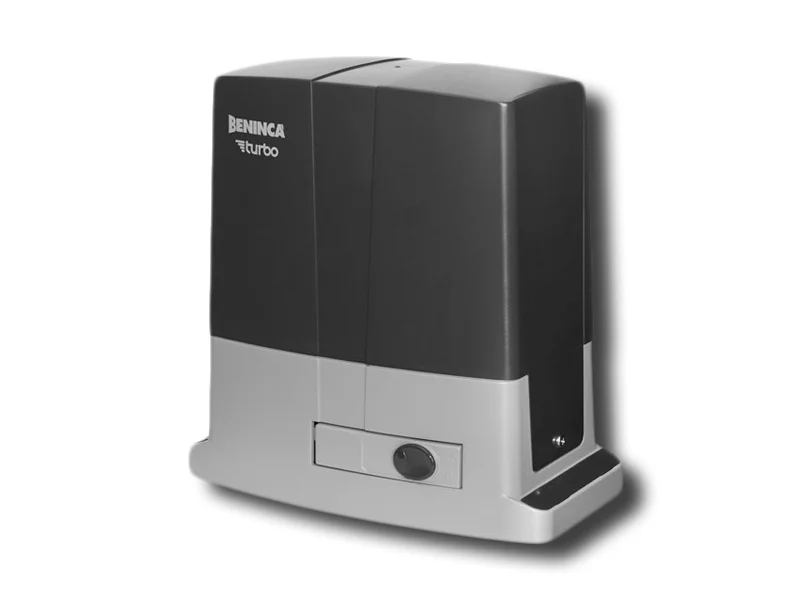

GEARED MOTOR FOR SLIDING GATES
BULL624 TURBO.S 959000904
TECNICAL DETAILS:
POWER SUPPLY: 115 Vac / 230 Vac (50-60Hz)
MOTOR SUPPLY: 24 Vdc
MAX ABSORBED CURRENT: 3 A
POWER CONSUMPTION IN STAND-BY: 8 mA
MAX THRUST: 330 N
OPENING SPEED: 12,5÷25,5 m/min
DUTY CYCLE: 60% (in extreme operating conditions the cycle falls to 40%)
PROTECTION LEVEL: IP44
MAGNETIC LIMIT SWITCHES: YES
OPERATING TEMPERATURES: -20°C /+50°C
