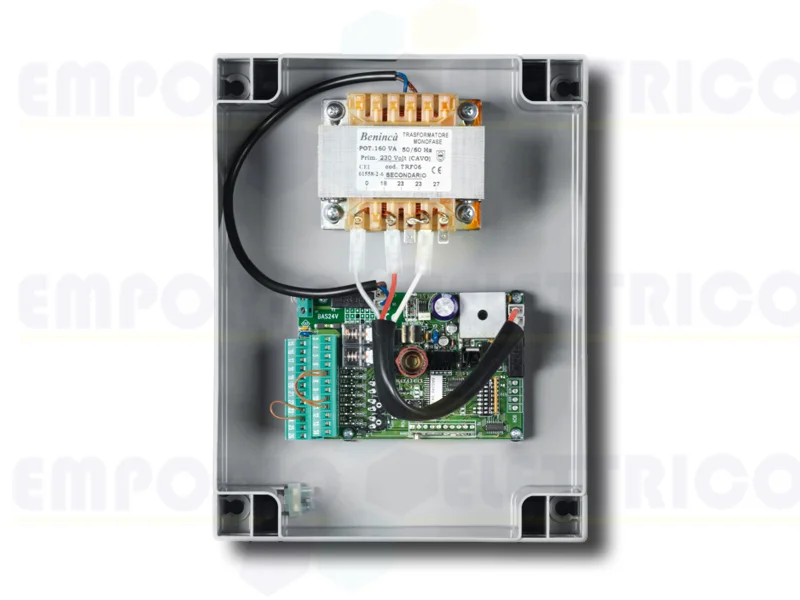

BENINCA - CONTROL UNIT FOR 1 OR 2 OPERATORS FOR OVERHEAD DOORS
- PARAMETER AND OPERATION LOGIC REGULATIONS THROUGH TRIMMERS AND DIP-SWITCHES
- INTEGRATED 433.92 MHZ 64-CODE RADIO RECEIVER WITH ARC CODING
- REMOVABLE TERMINAL BOARDS
- AUTOMATIC AND SEMI-AUTOMATIC LOGIC
- MOTOR LIMIT SWITCH INPUTS
- INPUTS FOR OPEN, CLOSE, STOP, STEP BY STEP AND PHOTOCELL
- N.C OR 8K2 SENSITIVE EDGE INPUT
- OUTPUT FOR SERVICE LIGHT 24 VAC/DC
- ELECTRONIC TORQUE ADJUSTMENT
- ANTI-CRUSHING SYSTEM WITH AMPEROMETRIC DETECTION
- FIXED SLOW-DOWNS
- ADVANTOUCH SYSTEM TO MANAGE RADIO TRANSMITTERS MEMORISED ON INTEGRATED RECEIVER
CONTROL UNIT POWER SUPPLY: 230 Vac
MOTORS POWER SUPPLY: 24 Vdc 80W + 80W
CONTROL UNIT
LOGICA24 917600974
