BENINCA - COMPLETE KIT FOR SWING GATES FOR RESIDENTIAL USE, UP TO 2,5 M OF LENGTH
- IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR 230 VAC WITH EASY-ACCESS RELEASE FROM ABOVE
- ESSENTIAL DESIGN AND LINES PARTICULARLY SUITABLE FOR WROUGHT IRON GATES
- EASY AND QUICK TO INSTALL THANKS TO COMPACT DIMENSIONS
- ENDLESS SCREW PROTECTED BY A SCRAPER RING AND A STAINLESS STEEL STEM THAT MAKES IT SUITABLE ALSO FOR DUSTY, SANDY OR AGGRESSIVE ATMOSPHERIC CONDITIONS.
- AVAILABLE IN LEFT AND RIGHT VERSIONS
SWING GATES KIT
KBILL30M 9598193
TECHNICAL DETAILS:
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAXIMUM ABSORBED CURRENT: 1.1 A
MAXIMUM THRUST: 2800 N
OPENING TIME: 16"
WORKING CYCLE: 30%.
STANDARD STROKE: 300 mm
MAXIMUM STROKE: 320 mm
INDEX OF PROTECTION: IP54
OPERATING TEMPERATURE: -20°C /+50°C

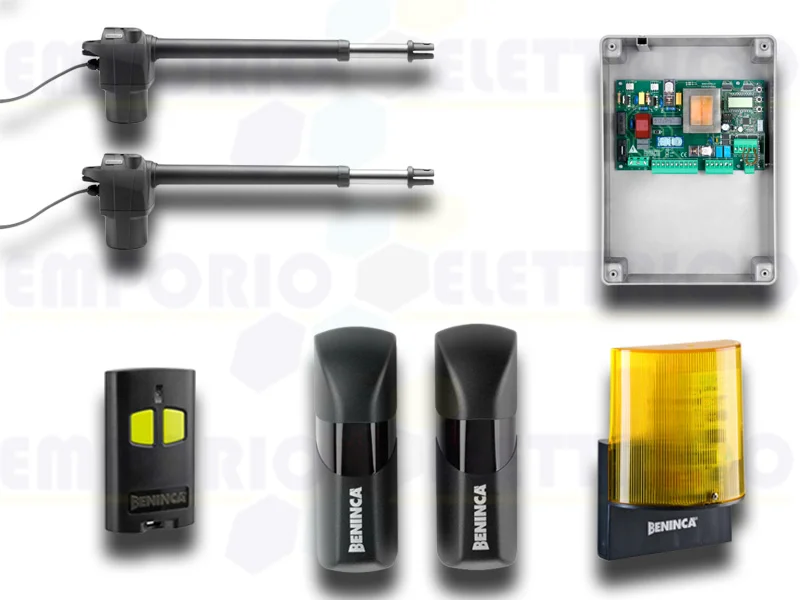

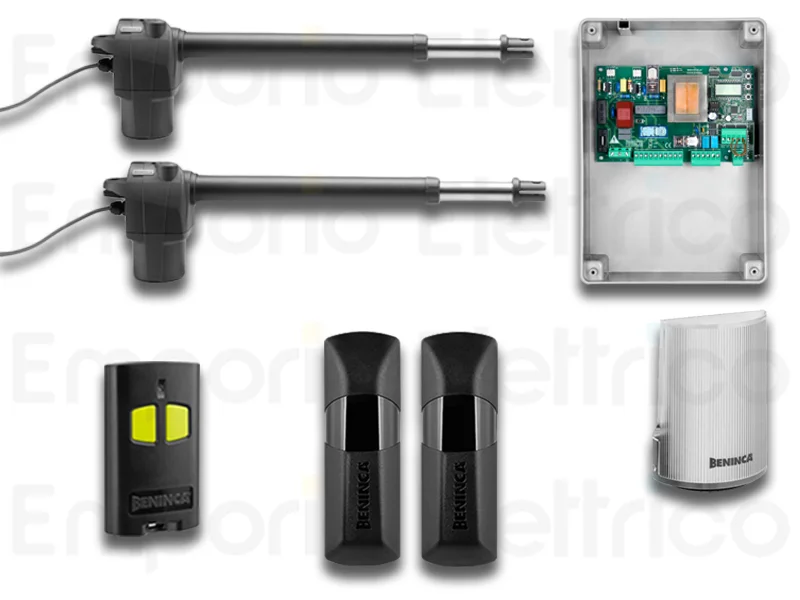

IT INCLUDES:
- 1 BILL30M: Electromechanical gearmotor 230v ac
- 1 HEADY: 230 Vac control unit for 1 or 2 actuators for swing gates, with built-in receiver
- 1 TO.GO2VA: 2-channel rolling code arc transmitter 433.92 Mhz
- 1 LAMPY: 12-250v ac/dc 50/60 mhz led flashing light
- 1 PUPILLA.T: Pair of photocells adjustable in 3 position
- 1 BENINCA sign
