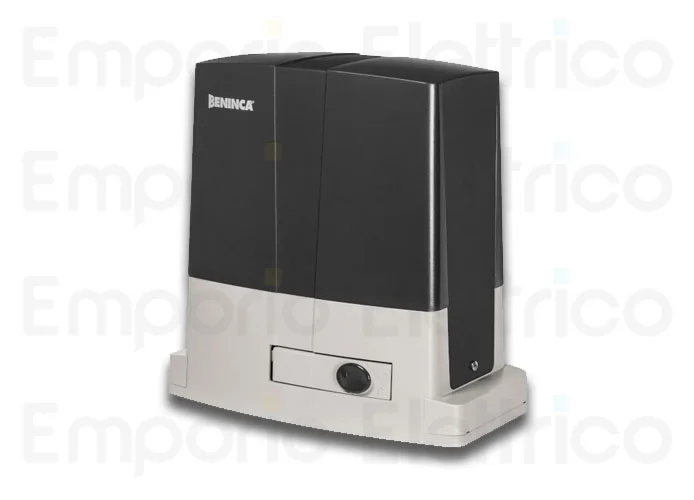

BENINCA - IRREVERSIBLE 24VDC GEARMOTOR FOR SLIDING GATES UP TO 1000KG HEAVY-DUTY LEAF.
- WITH BUILT-IN VIRTUAL ENCODER AND INTEGRATED CONTROL UNIT
- SWITCHING POWER SUPPLY 115/230 VAC ALLOWING LOW POWER CONSUMPTION AND LONG ACTUATOR LIFE
- THE CONTROL UNIT, LOCATED IN THE UPPER PART OF THE MOTOR, FACILITATES WIRING OPERATIONS
- THE PRESENCE OF THE VIRTUAL ENCODER MAKES IT POSSIBLE TO OPTIMALLY MANAGE SLOWDOWNS, TRACK THEIR PATH (STC SYSTEM) AND MANAGE TORQUE DELIVERY IN RELATION TO THE POSITION OF THE GATE, GUARANTEEING MAXIMUM SAFETY

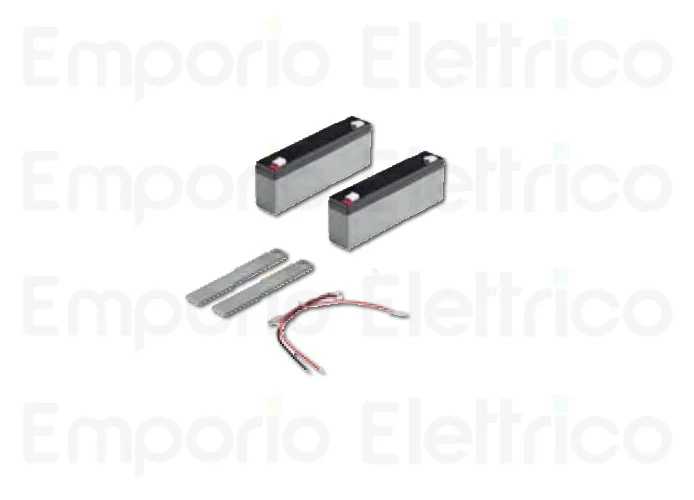

- GUARANTEED OPERATION EVEN IN THE EVENT OF A POWER FAILURE THANKS TO FULLY INTEGRATED BATTERIES IN THE MOTOR (NOT INCLUDED)
- ANTI-CRUSHING SYSTEM WITH AMPEROMETRIC DETECTION
- 2048 TRANSMITTERS CAN BE STORED WITHIN THE RECEIVER
- PREPARED FOR CONNECTION OF THE X.BE ACCESSORY FOR THE INTEGRATION OF KNX HOME AUTOMATION SYSTEMS AND PROGRAMMING VIA BEUP APP AND PRO.UP INTERFACE
- REINFORCED FOUNDATION PLATE INCLUDED. DIMENSIONS 326X164.5X2 MM, MOTOR MOUNTING CENTRE DISTANCE 301X75 MM, N° 4 HOLES Ø 8.5 MM
BENINCA - BULL1024SE
TECHNICAL FEATURES:MOTOR POWER SUPPLY: 24VDC
MAINS POWER SUPPLY: 115 / 230 VAC (50-60HZ)
MAXIMUM CURRENT ABSORBED: 4 - 2 A
TORQUE: 892 N
OPENING TIME: 5,5 ÷ 10,5 M/MIN
PROTECTION INDEX: IP44
LUBRICATION: GREASE
PINION FOR RACK: M4 Z14
OPERATING TEMPERATURE: -20°C /+50°C.
