BENINCA - 230Vac IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR WITH QUICK RELEASE OR CHAIN HANDLE, FOR SECTIONAL DOORS AND ROLLER SHUTTERS FOR INDUSTRIAL USE, WITH SHUTTERS UP TO 40 M2
- SINGLE-PHASE VERSION WITH REDUCTION RATIO 1/20
- NEW PLASTIC BOX FACILITATING MOTOR WIRING THANKS TO THE POSITION OF THE FRONT TERMINAL AND THE POSSIBILITY OF CABLE ACCESS FROM THREE DIFFERENT POSITIONS.
- TWO CHAIN DRIVE ACCESSORIES ARE AVAILABLE WITH 1:1 REDUCTION RATIO (OFF-AXIS MOTOR INSTALLATION) OR 1:1.8 (TORQUE OR SPEED MULTIPLIER)
- EASY AND PRECISE LIMIT SWITCH POSITION ADJUSTMENT
- MAXIMUM SAFETY GUARANTEED EVEN WHEN OPERATING THE QUICK RELEASE, THANKS TO A MICRO-SWITCH THAT INTERRUPTS THE MOTOR POWER SUPPLY
- OIL BATH REDUCTIONS WITH HARDENED STEEL SCREW AND BRONZE GEARBOX GUARANTEE HIGH PERFORMANCE, MAXIMUM RELIABILITY AND QUIETNESS
- 4 MICROMETRICALLY ADJUSTABLE LIMIT SWITCHES.

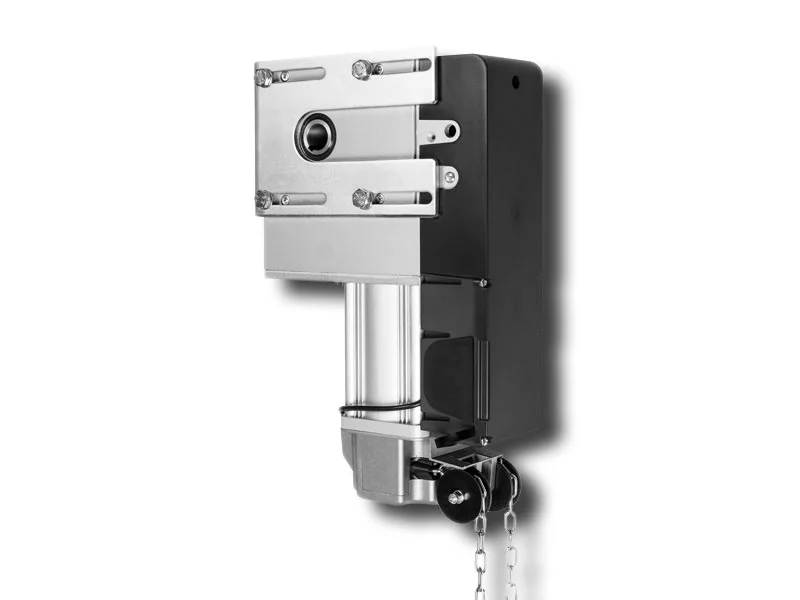

IRREVERSIBLE GEARMOTOR FOR INDUSTRIAL AND GARAGE DOORS
VN.M20 9592605
230VAC
TECHNICAL DATA:
Mains power supply: 230 Vac (50-60Hz)
Motor power supply: 230 Vac
Maximum absorbed current: 3,3 A
Maximum torque: 130 Nm
Maximum output rotations: 18
Output speed: 24 r.p.m.
Shaft hole: 1” (25,4 mm)
Limit switch reduction ratio: 1/20
Working cycle: 30%.
Index of protection: IP40
Operating temperature: -20°C /+50°C
Lubrication: OIL
Door surface: 35 m2/max
