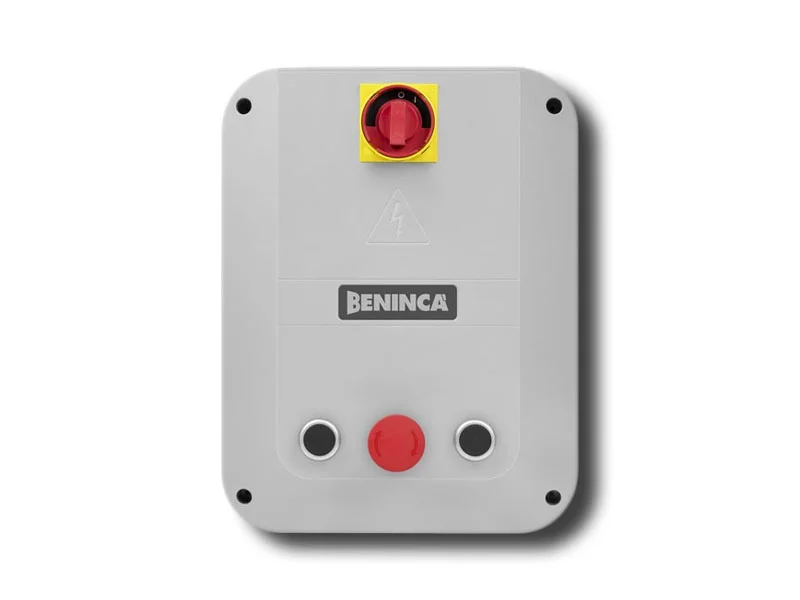

BENINCA - 230-400 VAC CONTROL PANEL FOR 1 ACTUATOR FOR SECTIONAL DOORS AND ROLLING DOORS, FOLDING DOORS WITH MORE THAN TWO SECTIONS, UNBALANCED SHUTTERS AND INDUSTRIAL SLIDING GATES
- SELF-HOLDING OPEN, CLOSE AND STOP BUTTONS AND TRI-POLE SWITCH
- DOOR LOCK INCORPORATED INTO THE CONTROL UNIT
- INTEGRATED LCD DISPLAY
- INTEGRATED 433.92 MHZ 64-CODE RADIO RECEIVER WITH ARC AND PREDESIGNED FOR PLUG-IN RADIO RECEIVER
- PREDESIGNED FOR CONNECTION TO ABSOLUTE ENCODER AND QUICK
WIRING (VN “ESW” MOTORS)
- AUTOSETTING OF OPERATING PARAMETERS WITH MOTORS EQUIPPED WITH ABSOLUTE ENCODER (VN “ESW” MOTORS)
- REMOVABLE TERMINAL BOARDS
- AUTOMATIC, SEMI-AUTOMATIC AND DEADMAN’S LOGIC
- MOTOR LIMIT SWITCH INPUTS
- OPEN, CLOSE, STEP BY STEP, PEDESTRIAN AND STOP INPUTS
- INPUTS FOR 4 PAIRS OF PHOTOCELLS (CONFIGURABLE AS ACTIVE IN OPENING-CLOSING OR IN CLOSING PHASES) AND EQUIPPED WITH PHOTO TEST LOGIC
- INPUT FOR N.C OR 8K2 SENSITIVE EDGE
- INPUT FOR SAFETY SENSOR
- OUTPUT CONFIGURABLE AS GATE OPEN INDICATOR, SECOND RADIO CHANNEL, SERVICE LIGHT AND AREA LIGHT
- OUTPUT CONFIGURABLE AS GATE OPEN INDICATOR OR PHOTOCELL TESTING OUTPUT
- PROTECTION AGAINST PHASE FAILURE AND EXCEEDING MOTOR CURRENT THRESHOLD
- ADVANTOUCH SYSTEM TO CONFIGURE PARAMETERS AND MANAGE RADIO TRANSMITTERS
- NUMBER OF MANEUVERS
- PROGRAMMING ACCESS PASSWORD
- MAINTENANCE WARNING
CONTROL UNIT POWER SUPPLY: 230 Vac OR 400 Vac
MOTORS POWER SUPPLY: 230 Vac 900W OR 400Vac 2200W
CONTROL UNIT
THINKY.I 917600940
